單室臥式高壓高流率氣淬真空爐

適用于模具鋼、高速鋼、不銹鋼等材料的淬火處理；不銹鋼、鈦及鈦合金等材料的固溶處理；多種磁性材料的退火處理及回火處理；也可用于真空釬焊及真空燒結等

分享商品：

銷售電話：15318905266

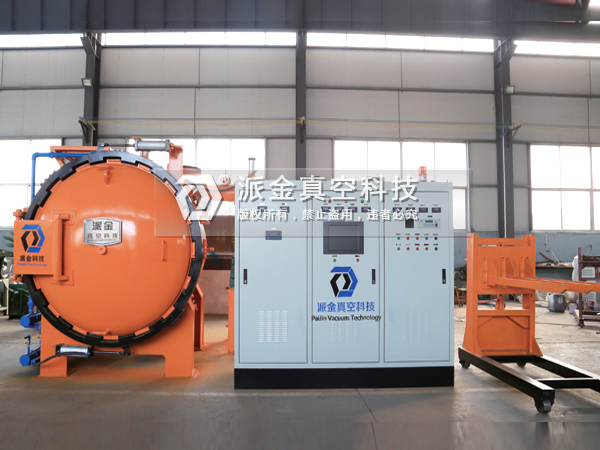

單室臥式高壓高流率氣淬真空爐

產品名稱：?jiǎn)问遗P式高壓高流率氣淬真空爐

Name : Single chamber horizontal high pressure and high flow rate gas quenching vacuum furnace

規格：見技術參數

Specification: Refer to technical parameters

用途：適用于模具鋼、高速鋼、不銹鋼等材料的淬火處理；不銹鋼、鈦及鈦合金等材料的固溶處理；多種磁性材料的退火處理及回火處理；也可用于真空釬焊及真空燒結等

Application: It is suitable for quenching treatment of materials such as die steel, high-speed steel, stainless steel, etc.; solution treatment of materials such as stainless steel, titanium and titanium alloy; annealing treatment and tempering treatment of various magnetic materials; and can be used for vacuum gas welding and vacuum sintering.

特點：Characteristic：

1.采用高效方形換熱器，冷卻速度提高80%

Using high efficiency square heat exchanger, the cooling rate is increased by 80%..

2.風嘴沿加熱室圓周360度均勻、交錯布置，冷卻均勻性好

The air nozzle is 360 degrees uniform along the circumference of the heating chamber, staggered, and the cooling uniformity is good..

3.加熱元件沿加熱室圓周360度均勻布置，溫度均勻性高

The heating element is uniformly arranged along the circumference of the heating chamber, and the temperature is high..

4.采用復合硬氈/金屬屏為加熱室隔熱層，適用不同工藝環境

The composite felt / metal screen is used as the heat insulation layer of the heating chamber, which is suitable for different process environments.　

5.工件變形小，生產效率高，使用成本低

The workpiece has the advantages of small deformation, high production efficiency and low cost of use..

6.編程工藝靈活輸入，機械動作穩定可靠，故障自動報警/顯示

Flexible input of programming process, stable and reliable mechanical action, automatic alarm/ display of fault.

7.氣淬風機變頻驅動，對流加熱功能可選、九點測溫可選、分級及等溫淬火、

The gas quenching fan is driven by frequency conversion, the convection heating function is optional, the nine-point temperature measurement is optional, the grading and the isothermal quenching are carried out,.

8.全智能化工業計算機控制系統并有一套手動操作系統

Fully intelligent chemical industry computer control system and a manual operating system。

9.操作簡潔、編程工藝靈活輸入、機械動作穩定可靠

Simple operation, flexible input of programming process, stable and reliable mechanical action. .

10.手動/半自動/自動 故障自動報警/顯示

Manual / semi-automatic / automatic fault automatic alarm / display.

配置選擇/Configure select:

爐門開啟方式： Furnace door opening mode：

回轉式

Rotary

平開式

Flat type

垂直升降式

Vertical lifting type

氣淬方式：

Gas quenching method：

圓周360度噴嘴射流冷卻 Circular 360 degree nozzle jet cooling

爐體外置換熱器循環冷卻 Circulating cooling of external heat exchanger of furnace body

爐體內置換熱器循環冷卻 Circulating cooling of displacement heater in furnace body

爐膽/Flue：

石墨加熱元件與石墨氈復合屏合成結構；

Synthesis structure of Graphite heating element and Graphite felt Composite screen

鉬加熱元件與金屬隔熱屏合成結構；

The composite structure of Mo heating element and metal thermal insulation screen;

真空泵組和真空計；

Vacuum pump set and vacuum gauge：

進口

Imported

高品質國產

High quality

Made in China

真空度：

Vacuum degree：

高真空

High vacuum

中真空

Medium vacuum

PLC:

西門子

Siemens

歐姆龍

OMRON

三菱

Mitsubishi

溫控儀表

Thermostat meter：

歐陸

EUROTHERM

導電

Electric conduction

熱電偶 :

Thermocouple：

S型分度號

S-type dividing number

記錄儀 :

Grapher :

有紙記錄儀

Paper recorder

無紙記錄儀

Paperless recorder

人機界面:

Human-computer interface

模擬屏

Analog screen

計算機觸摸屏

Computer touch screen

電器元件

Electrical component：

高品質國產

High quality

Made in China

施耐德

Schneider

西門子

Siemens

產品 規格/ Specifications：

注：特殊規格要求可根據客戶要求定制

Note: Special specification requirements can be customized according to customer requirements

以下參數可根據工藝要求調整，不作為驗收依據，具體以技術方案和協議為準

The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement.

參數/型號 Parameter/ Model	PJ-Q557	PJ-Q669	PJ-Q7711	PJ-Q8812	PJ-Q9916
有效熱區W×H×L Effective hot zone	500×500×700	600×600×900	700×700×1100	800×800×1200	900×900×1600
裝載重量（KG） Load weight	300	500	800	1200	2000
最高溫度（℃） Max.temprature	1350	1350	1350	1350	1350
爐溫均勻性（℃） Furnace temperature uniformity	±5	±5	±5	±5	±5
真空度（Pa） Vacuum degree	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3
壓升率（Pa） Pressure rise rate	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
氣淬壓力 Gas quenching pressure	6-25	6-25	6-25	6-25	6-25
冷卻氣體（99.995％） Cooling gas	N2/Ar/He	N2/Ar/He	N2/Ar/He	N2/Ar/He	N2/Ar/He
